Ventilation chimney for metal sheet tiles F type
USED WITH MODULE METAL SHEET TILES
Advantages
Gradient angle adjustable from 0º to 45º.Better efficiency thanks to the annular construction of the chimney.
Material with improved resistance to scraching.
Aesthetics and high quality of the product.

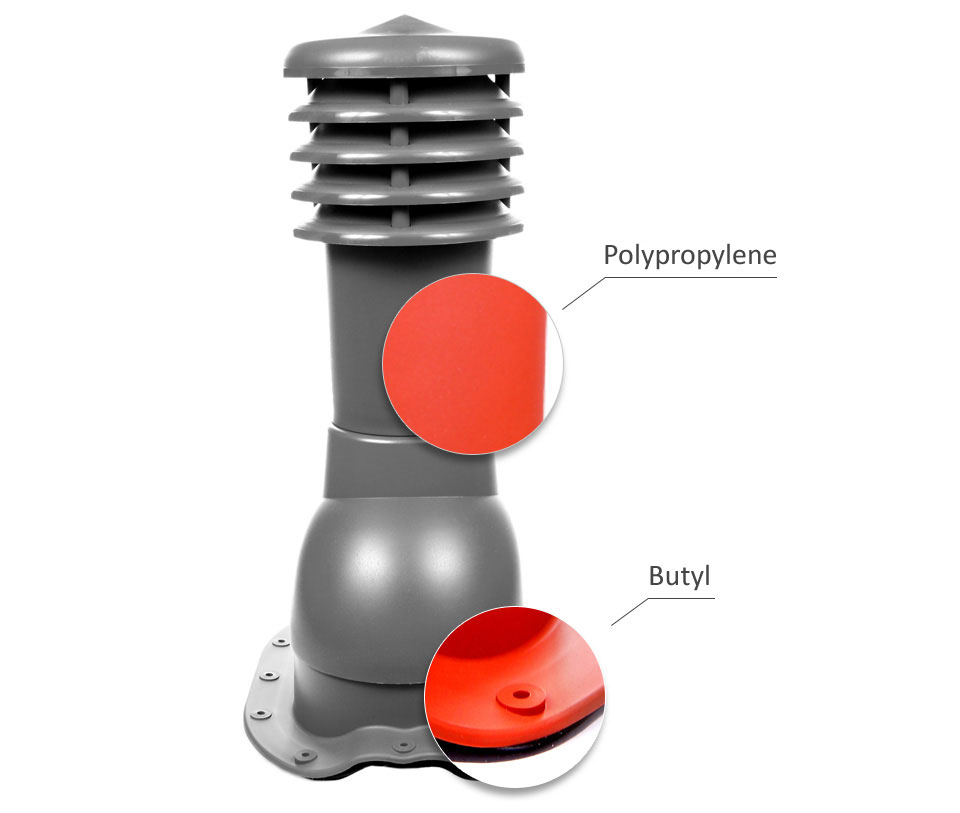

Material
Dyed polypropylene with UV stabilization.High-quality butyl caulking the basis.
Resistance
Weather conditions, aging processes, UV radiation.
Assembly
The set for direct installation includes: ventilation chimney or aerial's adapter or plain vent tile and the set of screws in the colour of the chimney.
Parameters
| Type | Diameter | Package (pcs) | Product code |
|---|---|---|---|
| Ventilation chimneys not insulated | 110 | 1 | KBD-F11...(RAL) |
| Ventilation chimneys insulated | 110 | 1 | KBD-FO11...(RAL) |
| Ventilation chimneys not insulated | 150 | 1 | KBD-F15...(RAL) |
| Ventilation chimneys insulated | 150 | 1 | KBD-FO15...(RAL) |
| AERIAL'S ADAPTER | - | 1 | PABD-F...(RAL) |
| VENT TILE | 150 | 1 | WPBD-F...(RAL) |
