2-pipe snow guard bracket for plain tiles
DESIGNED FOR INSTALLING SNOW GUARD PIPES ON PLAIN TILES
Advantages
Long basis fits any kind of plain tile.Aesthetics and high guality of the product.
Material

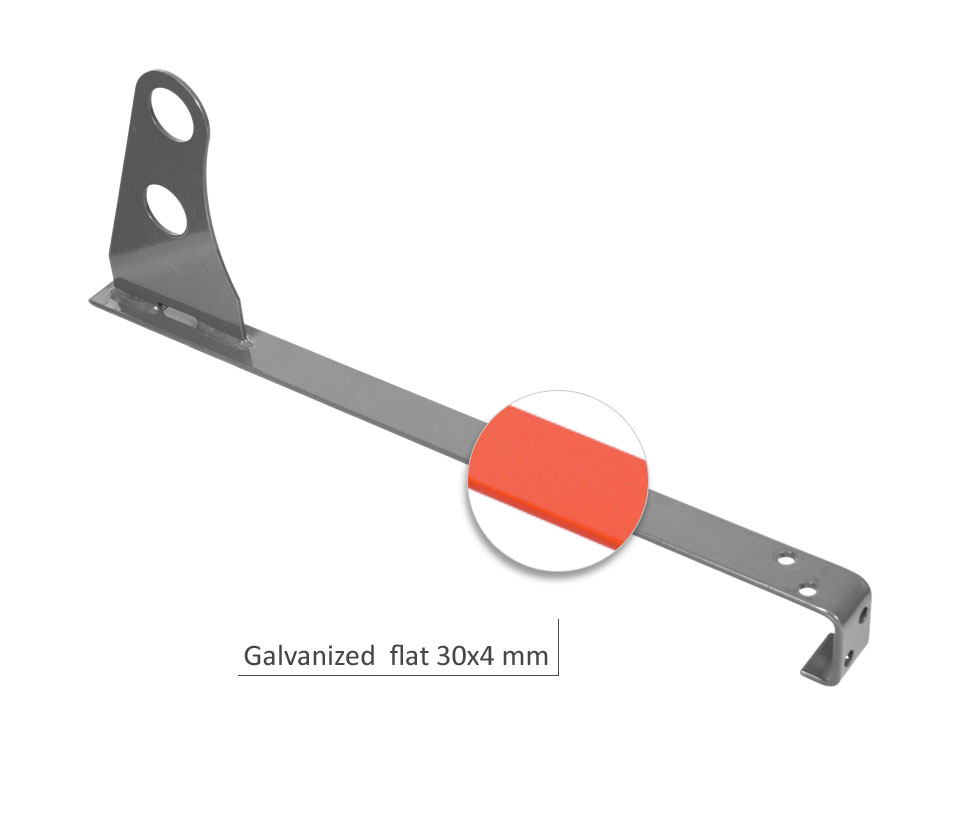

30 x 4 mm galvanized steel flat, powder painted.Resistance
Weather conditions, UV radiation.
Assembly

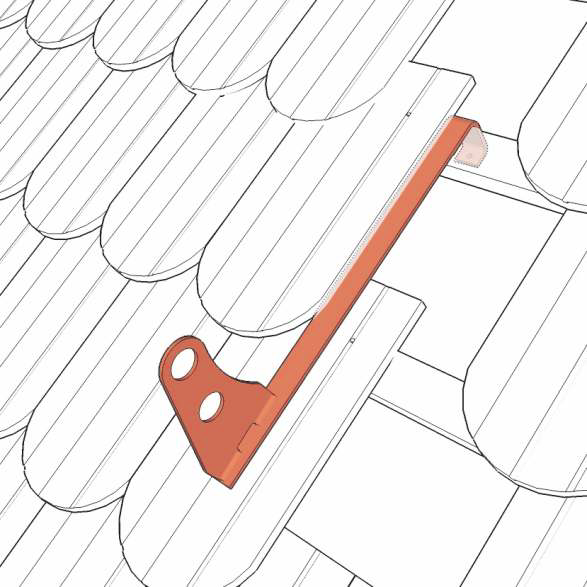

Snow guard pipes installation on the roof with a slope: - up to 40º - the distance between the the supports should not be exceed 600 mm, more than 40º - the distance between the the supports should not be exceed 450 mm.
Parameters
| Type | Weight | Length | Package (pcs) | Product code |
|---|---|---|---|---|
| BATTEN 40 | 0,80 | 485 | 10 | 022840...(RAL) |
| BATTEN 50 | 0,82 | 485 | 10 | 022850...(RAL) |
| BATTEN 60 | 0,84 | 485 | 10 | 022860...(RAL) |
