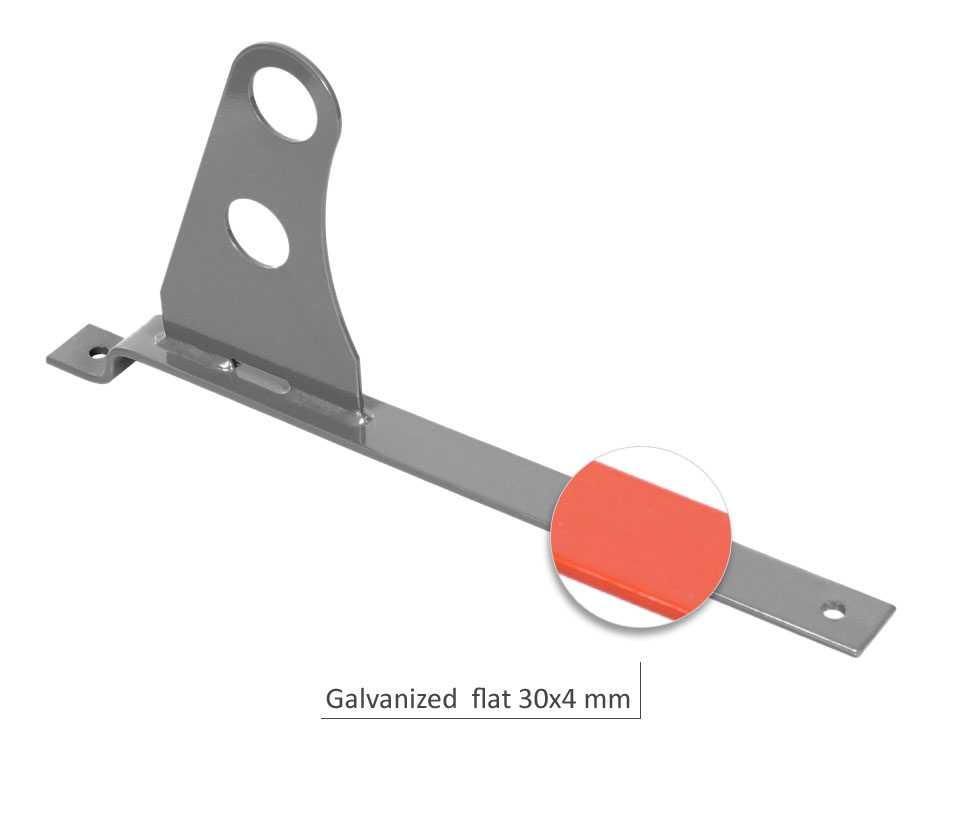

2-pipe snow guard bracket for metal sheet tiles
DESIGNED FOR INSTALLING SNOW GUARD PIPES ON METAL SHEET TILES
Advantages
Easy and fast to assembly.Aesthetics and high quality of the product.
Material
30 x 4 mm galvanized steel flat, powder painted.Resistance
Weather conditions, UV radiation.
Assembly
Snow guard pipes installation on the roof with a slope: - up to 40º - the distance between the the supports should not be exceed 600 mm, more than 40º - the distance between the the supports should not be exceed 450 mm.
Parameters
| Type | Weight | Package (pcs) | Product code |
|---|---|---|---|
| 350 | 0,92 | 10 | 020535...(RAL) |
| 400 | 1,02 | 10 | 020540...(RAL) |
| 460 | 1,10 | 10 | 020546...(RAL) |
| MODULAR | 0,95 | 10 | 020535/35...(RAL) |
